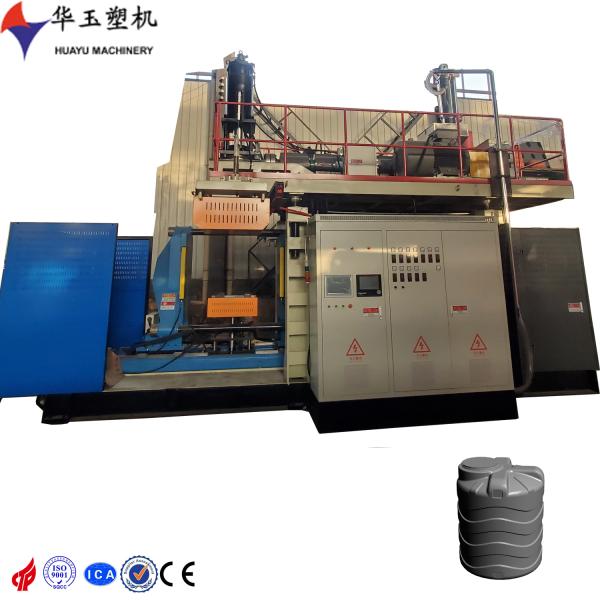

3000L 8-Layer Large High-Speed Water Tank Blow Molding Machine with Rapid Cooling System

Brand Name : HUAYU

Model Number : HYBM3000-8

Certification : IISO9001 CE

Place of Origin : CHINA

MOQ : 1 SET

Price : 440000 USD

Payment Terms : T/T,L/C

Supply Ability : 1SET 120DAYS

Delivery Time : 4 MONRHS

Packaging Details : be disassembled into many parts for container transportation

Application : Water Tank Production

Material : HDPE

Platen Distance : 2300-5500MM

Clamping Cylinder Stroke : 2000mm

Max Volume : 10-25L

Machine Size : 2.8x1.65x2.3M

Screw Heating Power : 4.4kw*15

Dimension : 5000x3000x4000mm

Automation Level : Fully Automatic

Guarantee : 1 Year

Mould Cavity : Single/Multi

Temperature Control : PLC module

Hollow Part Volume : 500-2000L

Size : customized

Extruder Type : Single Screw

Contact Now

This high-speed blow molding machine with a 3000L capacity and 8-layer co-extrusion is designed for rapid production. The water tank system ensures quick and efficient cooling, allowing for faster cycle times and increased productivity. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its robust design and high-speed capabilities make it ideal for manufacturers looking to boost production efficiency. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.

blowing and cooling system

stretching stroke

according to products

blow pin up/down stroke

600mm

air seat stroke

400mm

maximum air pressure

0.8Mpa

air consumption

3m3/min

Cooling method

Circulating water

Water pressure

0.3MPa

Cooling water consumption

75m3/h

Hydraulic system

main oil tank capacity

1700L

Servo motor, less energy consumption, high efficiency, low noise

main oil pump

gear pump 200CC

main oil pump motor

75kw

Servo oil tank capacity

200L

Servo oil pump model

Plunger pump22

Servo oil pump motor

11kw


3000L 8-Layer Large High-Speed Water Tank Blow Molding Machine with Rapid Cooling System
